16m Solar Shingle Ladder Lift

Description

Product Name: Stainless Steel Ladder Lift

MOQ:1 SET

Certifications: CE, ISO, etc.

Regular Height: 4-18m(13-59 ft)

Max Load Capacity:130-200kg(286-440lb)

Lifting Speed:12-16m/min

Motor Power:220V AC 50HZ,PA800-3000W

Remote Control Mode: Wired and Wireless Are Available

Plug: Universal

Pipe Material:Galvanized Steel Pipe

Net Weight (kg):80-120 kg

CBM/Set:1-1.5

Packing Details

Motor bracket 0.5m, extension bracket 2.0m+2.0m+2.0m+2.0m+2.0m+2.0m+2.0m+1.5m

Motor-30cm*70cm*110cm -0.231CBM-35kg

Pipe (3 Bundles):220cm*20cm*17cm -0.0748CBM-34.5kg

220cm*20cm*19cm-0.0836-34.2kg

220cm*25cm*19cm -0.104cbm-34.4kg/pcs

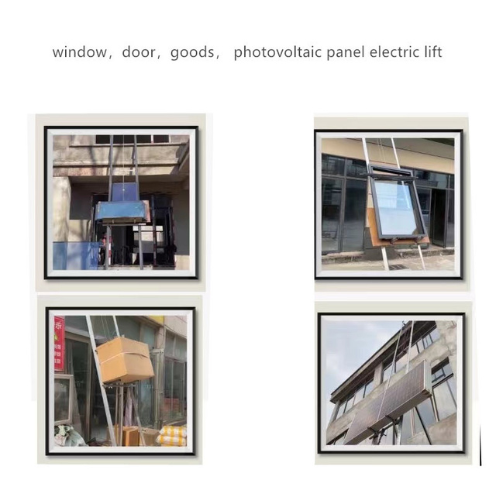

Application

Construction Companies

Companies that specialize in residential, commercial or industrial construction where lifts can move a variety of building materials in high-rise buildings.

Solar Installation Companies

companies that offer solar panel and module installation services, with lifts that can transport these heavy materials to the roof.

Roof Repair and Remodeling Companies

companies that specialize in roof repair, renovation, or replacement, with lifts that can move shingles, glass, and other materials.

Glass Installation Companies

Companies that specialize in the installation of glass curtain walls, windows, etc., where lifts can safely and efficiently move large pieces of glass in high-rise buildings.

Manufacturing Companies

Especially those involved with heavy parts or components, lifts can be used to move products to various floors.

Property Management Companies

Property management companies responsible for maintaining high-rise buildings, where lifts can be used for routine maintenance and repair work.

Renovation Companies

Companies that provide interior and exterior renovation services, where lifts can elevate materials to the upper floors for construction.

Key Features

Multi-purpose

Various types of carrier platforms are available for almost any scenario. Can carry up to 250 kilograms of cargo. Suitable for residential and commercial construction projects, they can be used to install pipes, glass, doors, windows, solar panels and other building materials.

Easy Installation

No tools are required for installation. The main part of the lift is as simple as connecting the sections of the rail ladder using ring nuts and bolts, and can be completed in 20 minutes by two installers (for a 10-meter ladder, for example).

Portable

Small and light enough to be transported in a normal pickup truck or van.

Fast and Stable

The lifting speed is 20-25 meters per minute, which improves the installation efficiency. Frequency control system ensures smooth starting and stopping.

Durable

The patented LBS rope groove extends the service life of the wire rope. Patented VFC system avoids inertia damage without changing speed.

Reliable

Fall arrest, overload detection, power failure protection and emergency braking prevent damage to property and people. Wireless and wired remote control is optional, which can better protect workers' safety under the premise of effective operation.

Q&A

Q1. How much do the lifts cost?

A1. It depending on height and custom requirements. Please leave the following information:

1. mounting height and quantity.

2. contact address and e-mail.

We will provide a detailed quotation later.

Q2. Where do you ship the lifts from? How to ship?

A2.Products are shipped from China. Usually by sea and air. The products are packed in wooden crates, and the volume of each set is under 2 cubic meters and 300 kilograms.

If you need exact shipping cost, please send us an inquiry and we will provide a specific quote.

Q3.Do you have the products in stock? Do you accept customization?

A3.We have warehouse in South Europe and North America. We provide customized service, please send your customized requirements, our technical engineers will provide the solution as soon as possible.

Q4. How do I pay?

A4. Retail equipment only support T/T payment, you can pay to bank account, Alibaba insurance order. Agent and distributor payment is negotiable.

Q5. When will the product be shipped after payment?

A5. Models in stock will be shipped to major ports in China or your designated freight forwarder's warehouse within one week after payment.
