Project Site: Sloped roof tile
Tile type: Most tile roof
Slope of roof: Up to 60°
Max Building Height: Up to 20m
Wind Load: 88m/s
Snow Load: 1.4kn/㎡
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape or Portrait
Standard: AS/NZS 1170, MCS, JIS &SGS
Product Features

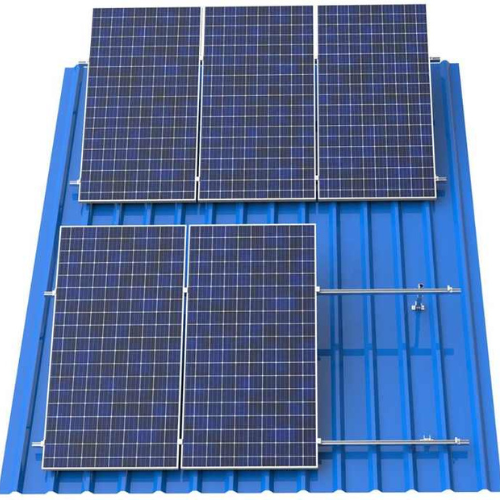

1. Pitched tile roof mounting structures are widely used for both crystalline and thin film module
2. Easy & quick installation
3. Few components and no more than two kinds of tools in whole system fixation
4. All pitched roof components are made with high quality aluminum & stainless steel
| Project Site: | Sloped roof tile |
| Tile type: | Most tile roof |
| Slope of roof: | Up to 60° |
| Max Building Height: | Up to 20m |
| Wind Load: | 88m/s |
| Snow Load: | 1.4kn/㎡ |
| Applicable Module: | Frame / frameless, crystalline/ thin film module |
| Module Orientation: | Landscape or Portrait |
| Standard: | AS/NZS 1170, MCS, JIS &SGS |
Key Components
Rail in Customized Length,Rail Connectors,Mid Clamps,End Clamps,Roof Hook
